Ecctrl

Physics-driven character, vehicle, drone, and custom-gravity controllers for React Three Fiber and Rapier.

Ecctrl is a modular controller toolkit for custom-gravity worlds, ShapeCast characters, torque-driven cars, thrust-driven drones, touch controls, runtime animation states, and editable physics curves.

Live Demo

Explore Ecctrl at ecctrl.app.

This is the best way to test the character controller, custom gravity, cars, drones, touch controls, time control, and tuning tools before adding Ecctrl to your project.

Full docs: API and configuration guide
Discord: Ecctrl discussion channel
Related project: BVHEcctrl, BVHEcctrl demo
Author: GitHub, X / Twitter, Website

Install

npm install ecctrl

Peer dependencies:

npm install three react react-dom @react-three/fiber @react-three/rapier

Optional packages:

npm install @react-three/drei leva

@react-three/drei is only needed for helpers such as KeyboardControls and camera tooling. If you do not use Drei, you can still drive controller input through refs or stores and build your own camera follow logic. leva is only needed if you want the visual curve editor or debug panels.

Quick Start

This is the smallest useful ShapeCast character setup:

import { KeyboardControls } from "@react-three/drei";
import { Physics } from "@react-three/rapier";
import { Ecctrl } from "ecctrl";

const keyboardMap = [
  { name: "forward", keys: ["ArrowUp", "KeyW"] },
  { name: "backward", keys: ["ArrowDown", "KeyS"] },
  { name: "leftward", keys: ["ArrowLeft", "KeyA"] },
  { name: "rightward", keys: ["ArrowRight", "KeyD"] },
  { name: "jump", keys: ["Space"] },
  { name: "run", keys: ["Shift"] },
];

export function CharacterScene() {
  return (
    <Physics>
      <KeyboardControls map={keyboardMap}>
        <Ecctrl>
          <CharacterModel />
        </Ecctrl>
      </KeyboardControls>
    </Physics>
  );
}

For custom gravity scenes, set Rapier gravity to [0, 0, 0] and let Ecctrl apply gravity per body:

<Physics gravity={[0, 0, 0]}>
  <Ecctrl enableCustomGravity>
    <CharacterModel />
  </Ecctrl>
</Physics>

Detailed Docs

The README gives the main concepts and common setup paths. Full prop tables, config defaults, handle output, input shapes, and tuning notes are available in the detailed docs:

API and configuration guide

Why Ecctrl

Ecctrl is built for games and simulations where controlled objects need to behave like part of the physics world.

The character floats with spring and damping, pushes back on the object below, follows moving platforms, aligns with custom gravity, and exposes runtime state for animation and gameplay logic. Ecctrl keeps that physics-driven direction and extends it into cars, drones, touch input, time control, and editable curve-driven behavior.

Highlights

Feature	What it gives you
Custom gravity	Position-based gravity fields shared by characters, vehicles, drones, and custom rigid bodies
ShapeCast character	Stable floating support, accurate standing points, gap handling, slope checks, and optional RayCast mode
ShapeCast wheels	Torque-driven wheel simulation with editable longitudinal and lateral slip curves

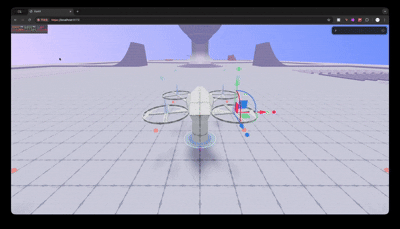

Propeller drones	Thrust and reaction torque are mixed per propeller for stabilized velocity or position flight
Curve LUTs	Runtime-cheap curve sampling for grip, engine torque, steering, and mass falloff
Leva curve editor	Optional draggable curve editor for tuning points, tangents, and weights
Time control	Pause and slow down the physics world for bullet-time style control
Touch controls	DOM-based joystick and virtual buttons that can be replaced by your own UI

Module Imports

Ecctrl is split into subpath exports so you can import only the parts you need.

import { Ecctrl } from "ecctrl";
import { EcctrlVehicle, ShapeCastWheel, ThrustPropeller } from "ecctrl/vehicle";
import { Joystick, VirtualButton } from "ecctrl/input";
import { useCustomGravity } from "ecctrl/gravity";
import { EcctrlCameraControls } from "ecctrl/camera";
import { TimeControl } from "ecctrl/time";
import { EcctrlAnimationStateController } from "ecctrl/animation";
import { bakeCurveLUT, evaluateCurveLUT } from "ecctrl/curves";
import { CurveEditorPlugin } from "ecctrl/leva";

For prototypes or examples, you can also import everything from ecctrl/all.

Custom Gravity

Custom gravity is one of the main systems in Ecctrl.

Instead of relying only on Rapier's global gravity vector, Ecctrl can read a gravity field function and apply gravity per body. This makes it possible to build spherical gravity, cylindrical gravity, wall-walking zones, gravity tunnels, rotating gravity fields, or gameplay-specific attraction areas.

When Ecctrl applies custom gravity, set Rapier's global gravity to [0, 0, 0] so the global gravity force and custom gravity field do not stack.

import { useEffect } from "react";
import * as THREE from "three";
import { Physics } from "@react-three/rapier";
import { Ecctrl } from "ecctrl";
import { useCustomGravity } from "ecctrl/gravity";

const center = new THREE.Vector3(0, 20, 0);
const gravity = new THREE.Vector3();

function GravitySetup() {
  const setGravityField = useCustomGravity((state) => state.setGravityField);

  useEffect(() => {
    setGravityField((bodyPos) => gravity.subVectors(center, bodyPos).normalize().multiplyScalar(9.81));
  }, [setGravityField]);

  return null;
}

export function Scene() {
  return (
    <Physics gravity={[0, 0, 0]}>
      <GravitySetup />
      <Ecctrl enableCustomGravity>
        <CharacterModel />
      </Ecctrl>
    </Physics>
  );
}

For custom rigid bodies outside Ecctrl, call applyGravityField each frame:

import { useRef } from "react";
import { useFrame } from "@react-three/fiber";
import { RigidBody, useRapier, type RapierRigidBody } from "@react-three/rapier";
import { useCustomGravity } from "ecctrl/gravity";

function CustomGravityRigidBody() {
  const body = useRef<RapierRigidBody>(null);
  const { world } = useRapier();
  const applyGravityField = useCustomGravity((state) => state.applyGravityField);

  useFrame(() => {
    if (body.current) applyGravityField(body.current, world.timestep);
  });

  return <RigidBody ref={body} />;
}

For dynamic gravity, keep the field function stable and update refs that the function reads. This avoids React renders and Zustand updates on every frame.

const gravityStrength = useRef(9.81);
const gravityTarget = useRef(new THREE.Vector3(0, 20, 0));

useEffect(() => {
  setGravityField((bodyPos) => gravity.subVectors(gravityTarget.current, bodyPos).normalize().multiplyScalar(gravityStrength.current));
}, [setGravityField]);

useFrame(({ clock }) => {
  // Move the attractor without replacing the gravity field function.
  const t = clock.elapsedTime;
  gravityTarget.current.set(Math.sin(t) * 10, 20, Math.cos(t) * 10);
});

Camera Controls For Custom Gravity

EcctrlCameraControls extends Drei CameraControls with setUp(newUp). It does not automatically follow a character by itself; you still drive the follow target from your controller ref.

import { useRef } from "react";
import * as THREE from "three";
import { useFrame, useThree } from "@react-three/fiber";
import { Ecctrl, type EcctrlHandle } from "ecctrl";
import { EcctrlCameraControls } from "ecctrl/camera";
import type { EcctrlCameraControlsHandle } from "ecctrl/camera";

function SceneCamera() {
  const ecctrl = useRef<EcctrlHandle>(null);
  const cameraControls = useRef<EcctrlCameraControlsHandle>(null);
  const cameraUp = useRef(new THREE.Vector3());
  const { camera } = useThree();

  useFrame(() => {
    if (!ecctrl.current || !cameraControls.current) return;

    const target = ecctrl.current.currPos;
    cameraControls.current.moveTo(target.x, target.y, target.z, true);

    cameraUp.current.copy(ecctrl.current.upAxis);
    camera.up.lerp(cameraUp.current, 0.1);
    cameraControls.current.setUp(camera.up);
  });

  return (
    <>
      <Ecctrl ref={ecctrl}>
        <CharacterModel />
      </Ecctrl>
      <EcctrlCameraControls ref={cameraControls} makeDefault smoothTime={0.1} />
    </>
  );
}

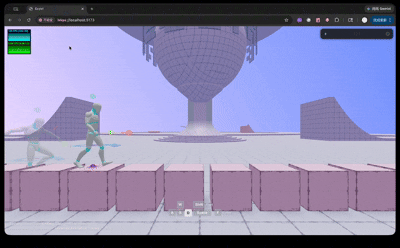

ShapeCast Character Controller

The character controller now uses ShapeCast ground detection by default. RayCast mode is still available when you want the lowest possible detection cost.

For the minimum setup, see Quick Start.

Ground Detection

ShapeCast mode gives the character a stronger ground signal than a single ray:

More natural movement over gaps and small seams
More accurate standing point and ground normal data
One cast can drive floating, slope, and support detection
Fallback center ray improves steep-slope and sharp-surface handling
Optional groundDetection="rayCast" mode for lower-cost scenes

<Ecctrl groundDetection="shapeCast" />
<Ecctrl groundDetection="rayCast" />

Physics Interaction

The character can push back on the world instead of only moving itself:

Standing applies counter mass to the supporting body
Moving applies opposite impulse to the standing point
Jumping applies downward impulse to the object below
Moving and rotating platforms are followed smoothly

These behaviors are enabled by default. You can disable them when a scene needs simpler interaction:

<Ecctrl
  followPlatform={false}
  applyCounterMass={false}
  applyCounterMoveImp={false}
  applyCounterJumpImp={false}
/>

Runtime Character State

EcctrlHandle exposes readonly runtime state for animation, gameplay logic, debug UI, or user-defined systems.

import { useRef } from "react";
import { useFrame } from "@react-three/fiber";
import { Ecctrl, type EcctrlHandle } from "ecctrl";

const ecctrl = useRef<EcctrlHandle>(null);

useFrame(() => {
  if (!ecctrl.current) return;

  const grounded = ecctrl.current.isOnGround;
  const speed = ecctrl.current.moveSpeed;
  const falling = ecctrl.current.isFalling;
});

<Ecctrl ref={ecctrl}>
  <CharacterModel />
</Ecctrl>

EcctrlHandle exposes more runtime values than the three shown here, including position, velocity, gravity direction, input state, and body axes. See the detailed docs for the full handle shape.

Animation State

Ecctrl includes a lightweight animation state resolver. The controller writes the current state into useEcctrlAnimationStore; your model decides how to play, blend, or hold each animation clip.

Default states:

"IDLE" | "WALK" | "RUN" | "JUMP_START" | "JUMP_IDLE" | "JUMP_FALL" | "JUMP_LAND"

Basic setup:

import { useEffect, useRef } from "react";
import { Ecctrl, type EcctrlHandle } from "ecctrl";
import { EcctrlAnimationStateController, useEcctrlAnimationStore } from "ecctrl/animation";
import { useAnimations, useGLTF } from "@react-three/drei";

const ANIMATION_MAP = {
  IDLE: "Idle",
  WALK: "Walk",
  RUN: "Run",
  JUMP_START: "Jump_Start",
  JUMP_IDLE: "Jump_Idle",
  JUMP_FALL: "Jump_Fall",
  JUMP_LAND: "Jump_Land",
} as const;

function AnimatedCharacterModel() {
  const group = useRef(null);
  const { scene, animations } = useGLTF("/character.glb");
  const { actions } = useAnimations(animations, group);
  const animationState = useEcctrlAnimationStore((state) => state.animationState);

  useEffect(() => {
    const action = actions[ANIMATION_MAP[animationState]];
    if (!action) return;

    action.reset().fadeIn(0.15).play();
    return () => action.fadeOut(0.15);
  }, [actions, animationState]);

  return (
    <group ref={group}>
      <primitive object={scene} />
    </group>
  );
}

function CharacterWithAnimation() {
  const ecctrl = useRef<EcctrlHandle>(null);

  return (
    <>
      <EcctrlAnimationStateController ecctrl={ecctrl} />
      <Ecctrl ref={ecctrl}>
        <AnimatedCharacterModel />
      </Ecctrl>
    </>
  );
}

For custom state mapping, pass a resolver:

import {
  EcctrlAnimationStateController,
  resolveEcctrlAnimationState,
  type EcctrlAnimationStateResolver,
} from "ecctrl/animation";

const resolver: EcctrlAnimationStateResolver = (ctx) => {
  if (ctx.handle.moveSpeed > 8) return "RUN";
  return resolveEcctrlAnimationState(ctx);
};

<EcctrlAnimationStateController ecctrl={ecctrl} resolver={resolver} />;

For fully custom animation graphs, skip the store and read EcctrlHandle directly in your animation system.

Vehicle System

Ecctrl includes a vehicle controller that can be built from wheels, propellers, or both.

import { EcctrlVehicle, ShapeCastWheel } from "ecctrl/vehicle";
import { CuboidCollider } from "@react-three/rapier";

<EcctrlVehicle>
  <CuboidCollider args={[1, 0.5, 2]} />
  <ShapeCastWheel position={[1, 0, 1.5]} driveWheel steerWheel brakeWheel />
  <ShapeCastWheel position={[-1, 0, 1.5]} driveWheel steerWheel brakeWheel />
  <ShapeCastWheel position={[1, 0, -1.5]} driveWheel brakeWheel />
  <ShapeCastWheel position={[-1, 0, -1.5]} driveWheel brakeWheel />
</EcctrlVehicle>

EcctrlVehicle owns the body state, input state, custom gravity, and high-level control logic. Wheels and propellers register as modules, compute local wheel or propeller data, and feed the vehicle with the values it needs to apply impulses.

Driving input can come from keyboard controls, touch controls, AI, or your own code:

import { useRef } from "react";
import { useFrame } from "@react-three/fiber";
import { EcctrlVehicle, type EcctrlVehicleHandle, type VehicleInput } from "ecctrl/vehicle";

function VehicleInputExample({ input }: { input: VehicleInput }) {
  const vehicle = useRef<EcctrlVehicleHandle>(null);

  useFrame(() => {
    vehicle.current?.setMovement(input);
  });

  return (
    <EcctrlVehicle ref={vehicle}>
      {/* body collider and vehicle modules */}
    </EcctrlVehicle>
  );
}

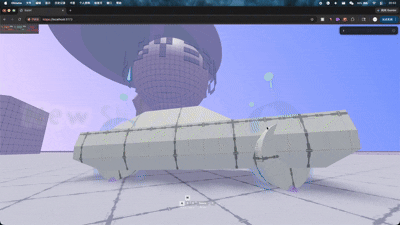

ShapeCast Wheels

ShapeCastWheel is designed for physics-driven vehicle control.

The wheel receives drive torque, updates wheel angular velocity, evaluates slip through baked curves, then applies longitudinal and lateral grip impulses to the vehicle body.

torque -> wheel speed -> slip -> grip -> impulse

Key features:

ShapeCast wheel detection for wheel-like support
Optional groundDetection="rayCast" mode for maximum performance
Stable support point handling for suspension force
Accurate contact, normal, slip, torque, RPM, and impulse data
Drive, steer, brake, rolling resistance, and tire relaxation logic
AWD, RWD, FWD, and weighted torque distribution
Longitudinal and lateral grip curves through LUTs
Low-speed stability and tire relaxation behavior
Counter impulses for objects under the wheel
Moving platform support

<ShapeCastWheel
  driveWheel
  steerWheel
  brakeWheel
  driveTorqueWeight={1}
  groundDetection="shapeCast"
  tireGripFactor={1.5}
/>

Torque Distribution

Drive torque is distributed across registered drive wheels. Use driveTorqueWeight when one wheel should receive more or less drive torque.

<ShapeCastWheel driveWheel driveTorqueWeight={1.2} />
<ShapeCastWheel driveWheel driveTorqueWeight={0.8} />

If no weight is provided, every drive wheel receives an equal share.

Engine And Transmission

The demo setup uses a simple motor-style fixed ratio. You can also provide a more combustion-engine-like setup with gear ratios, final drive, and automatic or manual transmission behavior.

<EcctrlVehicle
  carConfig={{
    engineHorsepower: 600,
    engineMaxRPM: 6000,
    gearRatios: [3.2, 2.1, 1.45, 1.0, 0.82],
    finalDriveRatio: 18,
    transmissionMode: "auto",
    shiftUpRPM: 5200,
    shiftDownRPM: 2200,
    shiftCooldown: 0.35,
  }}
/>

Manual gear selection can be driven through the vehicle ref:

vehicle.current?.setGear(2);

The vehicle ref also exposes gearIndex, driveRatio, and engineRPM for UI or custom logic.

Longitudinal and lateral tire behavior use separate LUT curves, so acceleration/braking grip and side grip can be tuned independently. Low-speed stabilization and tire relaxation are included to keep the result stable and smooth instead of twitchy at rest or during transitions.

Propeller Drones

ThrustPropeller is the drone motor module. Each propeller registers its thrust and torque setup with EcctrlVehicle; the vehicle controller works as the flight brain, mixes throttle, and lets each propeller apply real thrust and reaction torque instead of directly setting body velocity or rotation.

import { EcctrlVehicle, ThrustPropeller } from "ecctrl/vehicle";
import { CuboidCollider } from "@react-three/rapier";

<EcctrlVehicle
  droneConfig={{
    controlMode: "POSITION",
    maxHorizSpeed: 20,
    maxVertSpeed: 8,
    maxTiltAngle: Math.PI / 4,
  }}
>
  <CuboidCollider args={[0.6, 0.15, 0.6]} />
  <ThrustPropeller position={[1, 0, 1]} />
  <ThrustPropeller position={[-1, 0, 1]} invertTorque />
  <ThrustPropeller position={[1, 0, -1]} invertTorque />
  <ThrustPropeller position={[-1, 0, -1]} />
</EcctrlVehicle>

Key features:

Per-propeller thrust impulse
Per-propeller reaction torque impulse
Throttle mixing handled by EcctrlVehicle
maxThrust, torqueRatio, invertThrust, and invertTorque per propeller
Custom gravity support through the same vehicle gravity system
Optional propeller model spin update and debugger arrows

Drone control modes:

Mode	Behavior
`VELOCITY`	Manual velocity-style flight. Input maps to target horizontal, vertical, yaw, pitch, and roll behavior while the controller stabilizes the body.
`POSITION`	Position-targeted flight. The controller computes output from target position and direction, then stabilizes tilt, yaw, and vertical movement.

Curve LUTs

Ecctrl uses baked curve lookup tables for runtime performance. Curves can shape grip, torque, steering, mass-ratio falloff, and other controller responses.

Bake a curve once, then sample the LUT with a normalized input value at runtime:

import { useMemo } from "react";
import { useFrame } from "@react-three/fiber";
import { bakeCurveLUT, evaluateCurveLUT } from "ecctrl/curves";

const gripCurve = useMemo(
  () => bakeCurveLUT([
    { x: 0, y: 0, r_out: 1.45, w_out: 1 },
    { x: 0.25, y: 1, r_in: 0, r_out: 0, w_in: 1, w_out: 1 },
    { x: 1, y: 0.7, r_in: 0, w_in: 1 },
  ], 50),
  []
);

useFrame(() => {
  const grip = evaluateCurveLUT(slipRatio.current, gripCurve);
});

Curve data supports position, incoming/outgoing tangent ratios, and tangent weights. Runtime sampling reads from the baked LUT, so per-frame curve evaluation stays cheap.

Leva Curve Editor

CurveEditorPlugin is optional. It gives Leva a draggable curve editor for tuning curve points and tangents visually.

import { useControls } from "leva";
import { CurveEditorPlugin } from "ecctrl/leva";

const { engineTorqueCurveData } = useControls("Car Control", {
  engineTorqueCurveData: CurveEditorPlugin({
    points: [
      { x: 0, y: 1, r_out: 0, w_out: 1 },
      { x: 1, y: 0, r_in: 0, w_in: 1 },
    ],
    samples: 50,
  }),
});

<EcctrlVehicle carConfig={{ engineTorqueCurveData }} />;

You can drag points, drag tangents, or type exact values. If leva is not installed, Ecctrl can still use plain curve data and baked LUTs.

Time Control

TimeControl manually steps Rapier. This is useful for pause, slow motion, bullet time, and deterministic example controls.

Set <Physics paused> and let TimeControl step the world:

import { Physics } from "@react-three/rapier";
import { TimeControl } from "ecctrl/time";

const timeScale = useRef(1);

<Physics paused gravity={[0, 0, 0]}>
  <TimeControl timeScale={timeScale} maxDelta={1 / 30} />
</Physics>

timeScale can be a number or a ref. Ref values are useful when the value changes often and you want to avoid React renders.

Touch Input

Ecctrl uses DOM-based touch controls. You can use the built-in joystick and virtual buttons, connect to the exported stores, or build your own UI.

import { Joystick, VirtualButton } from "ecctrl/input";

<>
  <Joystick />
  <VirtualButton id="jump" label="Jump" />
  <VirtualButton id="enter" label="Enter" />
</>

The built-in UI is just a DOM overlay. You can replace it completely and drive the same input stores yourself:

import { useButtonStore, useJoystickStore } from "ecctrl/input";

useJoystickStore.getState().setJoystick(x, y);
useButtonStore.getState().setButtonActive("jump", true);

You can also bypass the stores and drive a controller directly through its ref:

ecctrl.current?.setMovement({ forward: true, jump: false });
vehicle.current?.setMovement({ forward: true, steerLeft: true });

Performance Notes

Ecctrl is built around runtime-friendly patterns:

Controller state is stored in refs where possible
Curve data is baked into LUTs before per-frame sampling
ShapeCast and RayCast modes can be selected per controller
Leva and debug tools are optional
Subpath exports avoid importing systems you do not use
Dynamic gravity can read refs instead of updating React or Zustand every frame

For larger scenes, start with ShapeCast for behavior and switch selected characters or wheels to RayCast when you need the lowest detection cost.

Support

Thanks to everyone who has tested Ecctrl, reported issues, shared feedback, contributed code, or supported the project.

Ecctrl is MIT-licensed, so commercial use is allowed. If Ecctrl helps your project, sponsorship is welcome and directly supports continued development.

For commercial projects, integration help, controller tuning, and custom physics-controller work are available by arrangement.

Contributing

Issues, bug reports, feature requests, tuning feedback, examples, docs improvements, and pull requests are welcome.

When reporting controller behavior, include the Ecctrl version, Rapier/R3F versions, a small reproduction if possible, and any relevant controller props. For vehicle tuning issues, screenshots or short clips are especially useful because wheel contact, suspension, and grip behavior are highly visual.

Roadmap

Car position-based control for driving toward a target, with obstacle avoidance considered after the base controller is stable.
Fully manual drone mode without self-balancing.
Two-wheel vehicle mode with self-balancing and steering lean.
More character abilities, such as double jump, air dash, swimming, wall climb, and wall kick jump.
More vehicle types and tuning presets.
Multiplayer demo examples.
More complete documentation, recipes, and live examples.

Local Development

npm install
npm run dev
npm run typecheck

License

MIT License.

Created by Erdong Chen.

Name		Name	Last commit message	Last commit date
Latest commit History 93 Commits
.github		.github
docs		docs
example		example
public		public
src		src
.gitattributes		.gitattributes
.gitignore		.gitignore
LICENSE		LICENSE
NOTICE		NOTICE
featurelog.md		featurelog.md
package-lock.json		package-lock.json
package.json		package.json
readme.md		readme.md
tsconfig.json		tsconfig.json
vercel.json		vercel.json
vercelVite.config.js		vercelVite.config.js
vite.config.js		vite.config.js

Uh oh!

Folders and files

Latest commit

History

Repository files navigation

Ecctrl

Live Demo

Contents

Install

Quick Start

Detailed Docs

Why Ecctrl

Highlights

Module Imports

Custom Gravity

Camera Controls For Custom Gravity

ShapeCast Character Controller

Ground Detection

Physics Interaction

Runtime Character State

Animation State

Vehicle System

ShapeCast Wheels

Torque Distribution

Engine And Transmission

Propeller Drones

Curve LUTs

Leva Curve Editor

Time Control

Touch Input

Performance Notes

Support

Contributing

Roadmap

Local Development

License

About

Resources

License

Uh oh!

Stars

Watchers

Forks

Releases

Sponsor this project

Uh oh!

Packages 0

Uh oh!

Uh oh!

Contributors

Uh oh!

Languages

Packages
